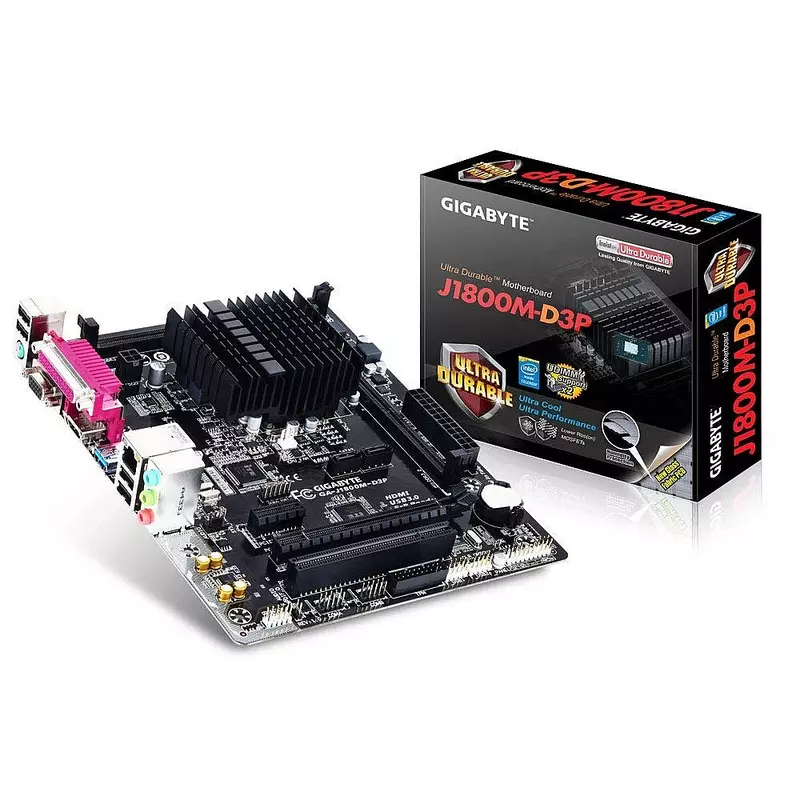

Gigabyte GA-J1800M-D3P Motherboard with Built-in Intel Celeron J1800 Processor
- Integrated Intel® Celeron™ J1800 Dual-Core Processor (2.41 GHz)
- GIGABYTE Ultra Durable™ Technology
- Supports Dual Channel DDR3/-L UDIMM memory
- Audio Noise Guard with High-Quality Capacitors
- All Solid Capacitors with Humidity Protection and Glass Fabric PCB Design
- LAN with High ESD Protection
- HDMI and D-Sub Ports on Rear Panel
- GIGABYTE On/Off Charge™ Support for USB Devices
- PCIe and PCI Interfaces for Flexible Expansion Options
Product Details
| Category | Details |
|---|
| Brand | Gigabyte |
| Model | GA-J1800M-D3P |
| CPU | Integrated Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)1 MB CacheDo not remove onboard SoC or heatsinks |
| Chipset | Intel® X99 Express |
| Memory | 2 × DDR3 DIMM slots, up to 8 GBSupports DDR3/DDR3L 1333 MHz, non-ECCDual-channel architecture |
| Onboard Graphics | 1 × D-Sub (max 2560×1600)1 × HDMI (max 1920×1080) |
| LAN | Realtek® GbE LAN (10/100/1000 Mbps) |
| Audio | Realtek® ALC887 HD Audio CodecSupports 2/4/5.1/7.1-channel outputS/PDIF Out supported |
| Expansion Slots | 1 × PCIe x16 slot (runs at x1)1 × PCIe x1 slot1 × PCI slot |
| Storage | 2 × SATA 3Gb/s ports |
| USB Ports | Rear: 1 × USB 3.0, 4 × USB 2.0Internal headers: 4 × USB 2.0 |
| Internal I/O | 24-pin ATX + 4-pin 12V power connectors2 × SATA 3Gb/sCPU/System fan headersFront panelFront audioS/PDIFUSB 2.0 headers2 × Serial headersTPM headerClear CMOS jumper |
| Back Panel I/O | PS/2 combo portD-SubHDMIParallel port1 × USB 3.04 × USB 2.0RJ-45 LAN3 × Audio jacks |
| I/O Controller | iTE Controller Chip |
| Hardware Monitoring | Voltage, temperature, fan speed monitoringFan speed control (depends on cooler) |
| BIOS | 64 Mbit AMI UEFI BIOSSupports PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | Xpress Install@BIOSAPP Center SupportON/OFF Charge |
| Bundled Software | Norton® Internet Security (OEM)Intel® Smart Connect Technology |
| Operating System Support | Windows 10 / 8.1 / 8 / 7 |
| Form Factor | Micro ATX (22.6 × 18.0 cm) |
| Warranty | 3 Years Manufacturer Warranty |
| Country of Origin | China |
| Manufacturer | Gigabyte Technology (India) Pvt. Ltd., Mumbai |
| Importer | WPG C&C Computers and Peripherals (I) Pvt. Ltd., New Delhi |
| Net Quantity | 1 |
| Package Dimensions | 27 × 23.5 × 5.8 cm |
| Weight | 700 g |
| Note | Specifications may change without notice |
